Machine mount - levelling foot SFE 50 vibration-damped - Sylomer®
- Base plate: Stainless steel 1.4301 - AISI 304
- Threaded spindle: Stainless steel 1.4301 - AISI 304
- Damping plate: Sylomer®
With its balanced alloy of chromium and nickel, 1.4301 offers outstanding corrosion resistance in everyday and industrial environments.
It is ideal for applications in contact with air humidity, water and many foods. It is resistant to many weakly aggressive media, such as diluted acids or cleaning agents. It is also easy to care for and hygienic – the smooth, corrosion-resistant surface prevents deposits and is easy to clean.
The Sylomer® damping plate, bonded with a special adhesive, effectively dampens vibrations and structure-borne noise. It is permanently dimensionally stable, ageing- and weather-resistant. Sylomer® has good chemical properties against oils, greases, diluted acids and alkalis, as well as good UV and ozone resistance.
Caution: In chloride-containing environments (e.g. seawater, swimming pools, de-icing salts), pitting corrosion may occur. A special stainless steel is the better choice for strong acids or highly concentrated chemicals. For these cases, we recommend stainless steel 1.4404 (AISI 316L). Please contact us for more information.
This machine foot is also available in chrome-plated steel.
Our high-quality, precision-manufactured machine feet offer many advantages. Among other things, they reduce vibrations and, thanks to the Sylomer® damping plate, reduce noise caused by vibrations. In addition, they protect the machines, thereby increasing their service life.
Machine feet with Sylomer® damping plates are particularly suitable for machines and products that require precise vibration damping.
The machine foot is steplessly height-adjustable via the thread (depending on the spindle length) and can be adjusted to an angle of inclination of approx. 7.5° in each direction (approx. 15° in total) via the ball-bearing spindle. This guarantees stable and accurate alignment of the machine.
Machine feet with Sylomer® damping plates are particularly suitable for machines and products that require precise vibration damping.
The machine foot is steplessly height-adjustable via the thread (depending on the spindle length) and can be adjusted to an angle of inclination of approx. 7.5° in each direction (approx. 15° in total) via the ball-bearing spindle. This guarantees stable and accurate alignment of the machine.
- Vibration damping with maximum stability
- Noise reduction and protection against slipping
- Increased durability of machines, measuring instruments and products
- Compensation for uneven floors without the need for costly concrete foundations
- Large hexagonal wrench surfaces for easy height adjustment
- Bolted connection between plate and spindle
Sizes in stock and quickly available (please ask for special sizes) Machine mount SFE50:
- SFE50M8x50
- SFE50M8x80
- SFE50M8x100
- SFE50M8x120
- SFE50M8x150
- SFE50M8x180
- SFE50M8x200
- SFE50M8x250
- SFE50M8x300
- SFE50M10x50
- SFE50M10x80
- SFE50M10x100
- SFE50M10x120
- SFE50M10x150
- SFE50M10x180
- SFE50M10x200
- SFE50M10x250
- SFE50M10x300
- SFE50M12x50
- SFE50M12x80
- SFE50M12x100
- SFE50M12x120
- SFE50M12x150
- SFE50M12x180
- SFE50M12x200
- SFE50M12x250
- SFE50M12x300
- SFE50M14x50
- SFE50M14x80
- SFE50M14x100
- SFE50M14x120
- SFE50M14x150
- SFE50M14x180
- SFE50M14x200
- SFE50M14x250
- SFE50M14x300
- SFE50M16x50
- SFE50M16x80
- SFE50M16x100
- SFE50M16x120
- SFE50M16x150
- SFE50M16x180
- SFE50M16x200
- SFE50M16x250
- SFE50M16x300
- SFE50M20x50
- SFE50M20x80
- SFE50M20x100
- SFE50M20x120
- SFE50M20x150
- SFE50M20x180
- SFE50M20x200
- SFE50M20x250
- SFE50M20x300
- SFE50M24x50
- SFE50M24x80
- SFE50M24x100
- SFE50M24x120
- SFE50M24x150
- SFE50M24x180
- SFE50M24x200
- SFE50M24x250
- SFE50M24x300
- SFE50M30x50
- SFE50M30x80
- SFE50M30x100
- SFE50M30x120
- SFE50M30x150
- SFE50M30x180
- SFE50M30x200
- SFE50M30x250
- SFE50M30x300

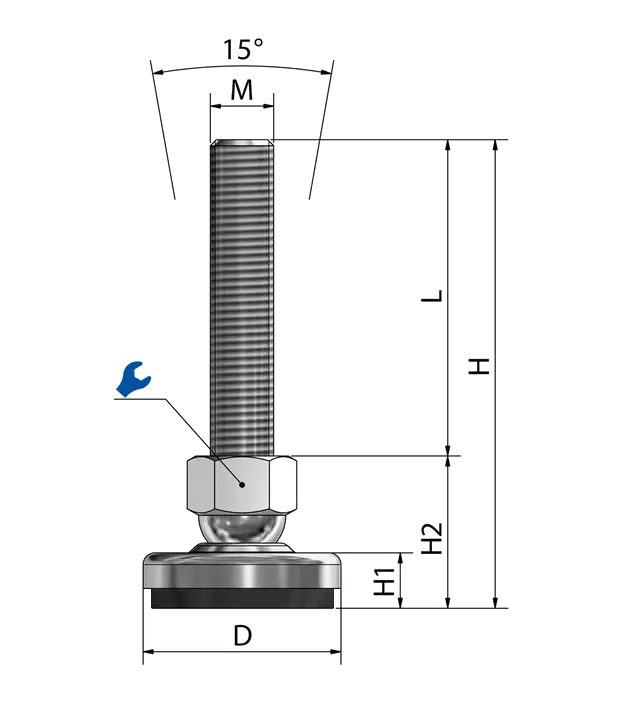

Technical Details
| Ø D | 50 mm |
| H1 | 14.5 mm |
| H2 | --- mm |
| H | --- mm |
|
17 mm |
| Sylomer® | 12.5 mm |
|
1.5 - 95 kg |
Notice: The maximum static load value refers to the Sylomer® damping layer. If you have any questions about the load on the base plates or spindles, please feel free to contact our technical support team.
